Foundation Repair Photo Album: Utah Foundation Repair: 50+ Pier Installation for Severe Settlement | Davenport Foundation Repair

Severe foundation settlement requires serious solutions—and this Utah home was a perfect example. Widespread structural movement led to interior cracking, door and window misalignment, and significant instability throughout the property. After a full inspection, our team at Davenport Foundation Repair determined that a large-scale stabilization plan was needed, requiring the installation of over 50 steel piers. This project involved both interior and exterior work, including excavation along the foundation, precision placement of pier brackets beneath the footing, and the use of deep-driven piers to transfer the weight of the home to stable soil layers below. Inside the home, sections of the slab were carefully opened to access load-bearing points, followed by full restoration once the system was installed. Throughout the process, safety and long-term performance were the priority—from shoring during excavation to detailed slab repair and finishing. The result is a stabilized structure, corrected settlement issues, and a home that is now protected against future movement. If you’re seeing cracks, sticking doors, or uneven floors, these may be early signs of foundation problems. Addressing them early can prevent the need for extensive repairs like this one.

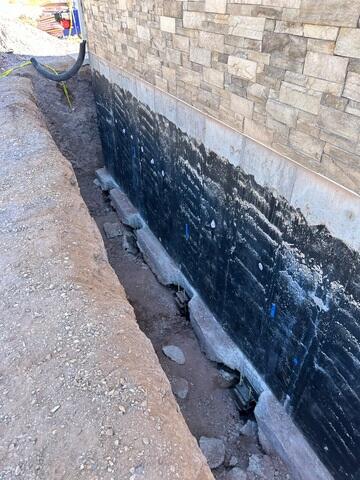

Exterior Pier Installation Along Foundation Wall in Utah

This photo shows exterior excavation along the foundation wall during a large-scale repair project in Utah. Multiple steel piers are installed beneath the footing while the exposed wall is treated and protected. Davenport Foundation Repair uses this process to stabilize homes experiencing severe settlement, transferring structural loads to deeper, more stable soil layers and helping prevent future movement.

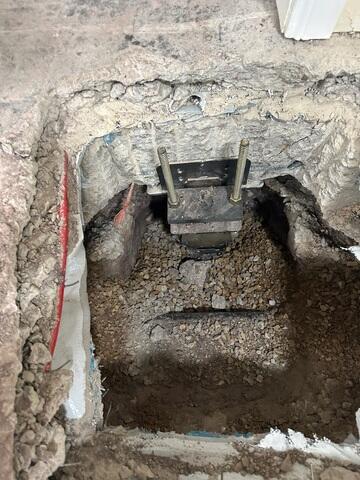

Steel Pier Bracket Installed Beneath Foundation Footing in Utah

This close-up image shows a steel pier bracket installed beneath the foundation footing during a major repair project in Utah. After carefully excavating beneath the slab, Davenport Foundation Repair positioned the bracket to transfer the weight of the home onto a deep pier system. With over 50 piers installed on this project, each connection point like this plays a critical role in stabilizing the structure and preventing further settlement.

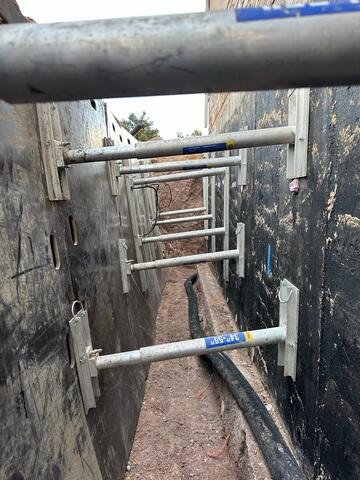

Excavation Shoring System Supporting Foundation Repair in Utah

This image shows a professionally installed shoring system used during deep excavation for a major foundation repair in Utah. As crews worked to install over 50 piers, temporary wall supports were placed to stabilize the surrounding soil and ensure safe working conditions. Davenport Foundation Repair uses these systems to maintain structural safety while accessing deep foundation elements for long-term stabilization.

Steel Pier Bracket Installed Beneath Foundation Footing in Utah

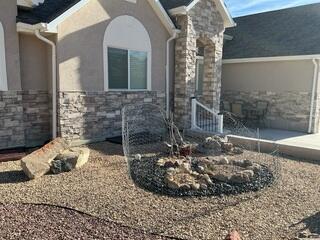

Exterior View of Home with Foundation Settlement Concerns in Utah

This exterior photo shows the Utah home undergoing extensive foundation repair by Davenport Foundation Repair. While interior damage revealed significant structural movement, homes like this often show subtle signs of settlement from the outside. Due to severe foundation issues, this property required the installation of over 50 piers to stabilize the structure and prevent further movement.

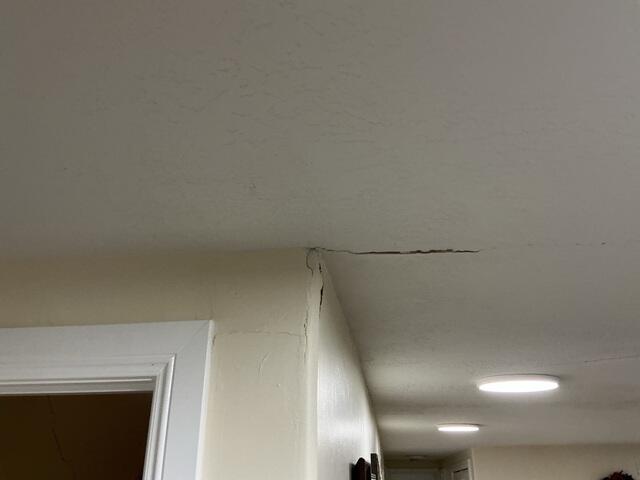

Ceiling and Doorway Cracking from Foundation Movement in Utah

This image shows cracking along the ceiling and above a doorway-another clear sign of foundation settlement in a Utah home. As the foundation shifts, stress transfers through the framing, often causing separation at corners, ceilings, and door openings. Damage like this is a strong indicator of structural movement and was part of the widespread issues that required a large-scale pier installation to stabilize the home.

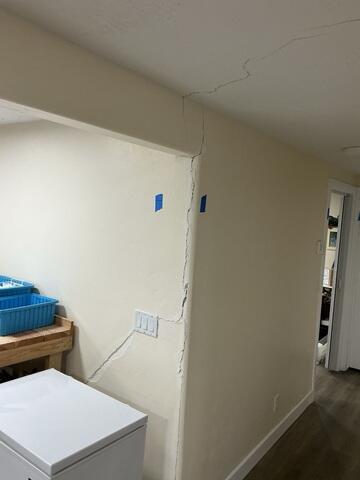

Severe Interior Wall Cracking from Foundation Settlement in Utah

This photo shows significant interior wall cracking caused by foundation settlement in a Utah home. The vertical and diagonal cracks extending from the ceiling down the wall are clear indicators of structural movement, often resulting from shifting soil beneath the foundation. Damage like this is a strong sign that deep stabilization-such as the installation of a large pier system-is needed to restore and protect the home's structural integrity.

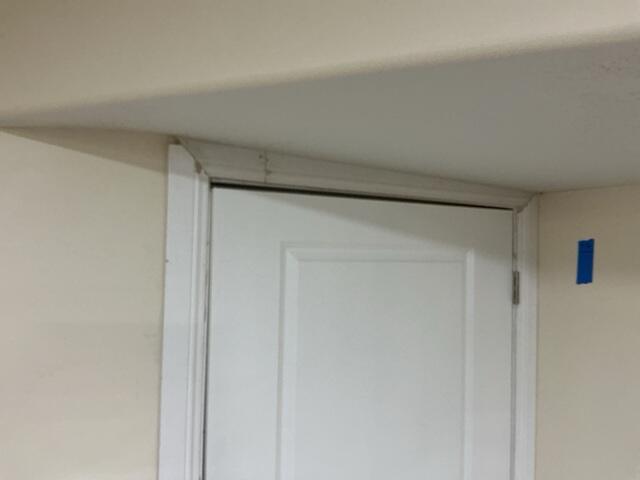

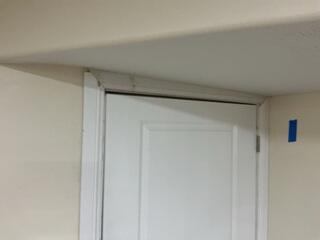

Door Frame Separation Caused by Foundation Settlement in Utah

This image highlights a common interior symptom of foundation settlement in Utah-a visible gap forming along the top of a door frame. As the foundation shifts and settles unevenly, it can cause structural misalignment throughout the home, leading to separation at doors, windows, and walls. In this case, issues like this contributed to the need for extensive stabilization using over 50 piers by Davenport Foundation Repair.

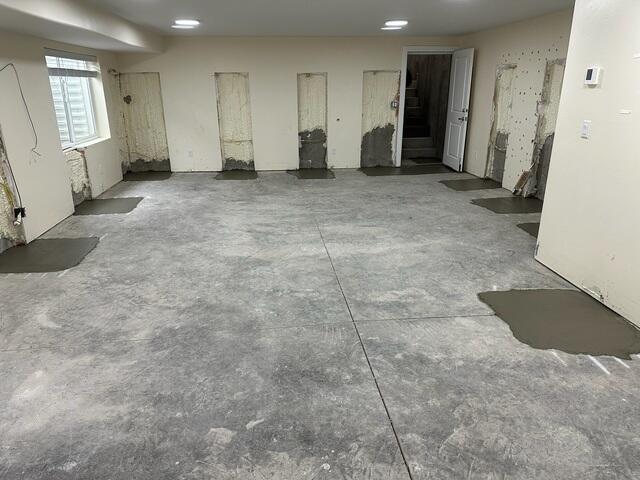

Completed Interior Foundation Stabilization with Pier System in Utah

This image shows the completed interior phase of a large-scale foundation repair in Utah, where over 50 piers were installed to stabilize the home. The basement slab has been restored after pier installation, with patched access points marking where deep foundation supports were placed beneath the footing. Davenport Foundation Repair successfully reinforced the structure, helping prevent further settlement and providing long-term stability to the home.

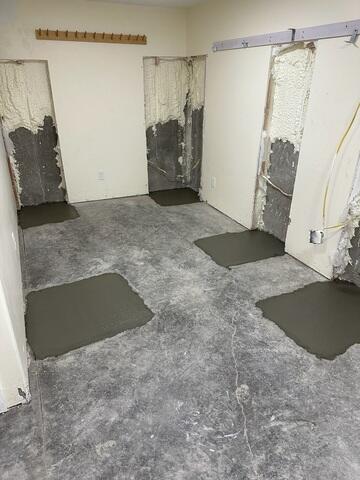

Concrete Slab Restoration After Interior Pier Installation in Utah

Following the installation of multiple steel piers, this photo shows the interior slab restoration phase of a major foundation repair project in Utah. Access points that were opened to install over 50 piers are carefully filled and patched, restoring the structural integrity of the basement floor. Davenport Foundation Repair ensures these areas are properly sealed, leaving the home stabilized and ready for final finishing work.

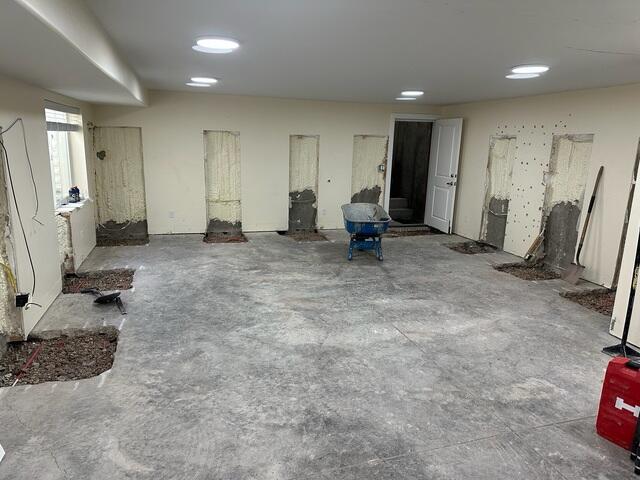

Interior Pier Installation for Foundation Stabilization in Utah Basement

This photo captures the interior phase of a large-scale foundation repair in Utah, where multiple access points were created along the basement perimeter to install steel piers beneath the footing. With over 50 piers required for this project, Davenport Foundation Repair carefully opened sections of the slab to reach load-bearing areas. This process allows for deep foundation support, helping to stabilize the structure and prepare for lifting and long-term settlement correction.

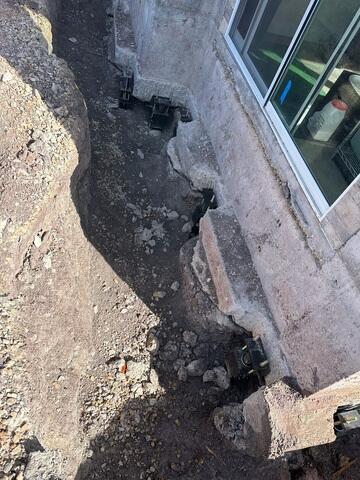

Pier Brackets Installed Beneath Settled Foundation in Utah

This image shows multiple steel pier brackets installed beneath the home's footing during a large-scale foundation repair in Utah. After excavation, Davenport Foundation Repair positioned these brackets to support the structure as part of a system exceeding 50 piers. These components transfer the weight of the home to deeper, more stable soil layers, helping stop settlement and prepare the foundation for lifting and stabilization.

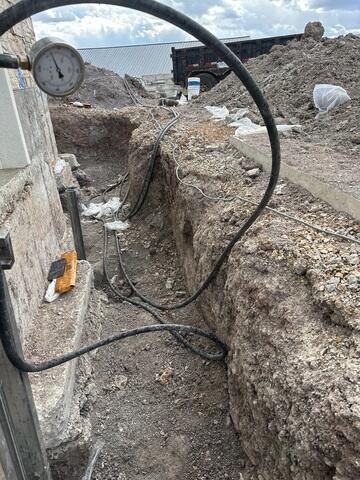

Foundation Excavation for Pier Installation in Utah

This photo shows the early stages of a major foundation repair project in Utah, where extensive excavation was required to access the footing for pier installation. With over 50 piers planned for this home, precise trenching along the foundation allows crews from Davenport Foundation Repair to prepare for deep structural stabilization. This step is critical in addressing severe settlement issues and ensuring the foundation can be permanently supported.
